DESCRIPTION

Basic Info

Model NO.	3HE-MF2000W
After-sales Service	Online After Sales Servise
Warranty	1 Year
Application	Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Technical Class	Continuous Wave Laser
Control	Automatic
Power Density	Deep Fusion Welding
Laser Classification	Optical Fiber Laser
Type	Automatic Laser Welding Machine
Machine Model	3he-Mf500W/750W/1000W
Host System Dimension	1500*700*1000mm
Machine Power Consumeption	10kw-12kw
Electrical Reuqirement	380V+(-)10%/50Hz/60A
Aiming and Positioning	CCD and Red Right
Laser Material	Fiber Continuous Laser
Maximum Laser Power	500W/750W/1000W
Laser Wavelength	1064nm
Colling Method	Water Cooling
Adjustable Facula Size	0.2-3mm
Transport Package	Carton
Specification	CE
Trademark	SanHe
Origin	Dongguan Guangdong
HS Code	8486204900
Production Capacity	200set/Month

Product Description

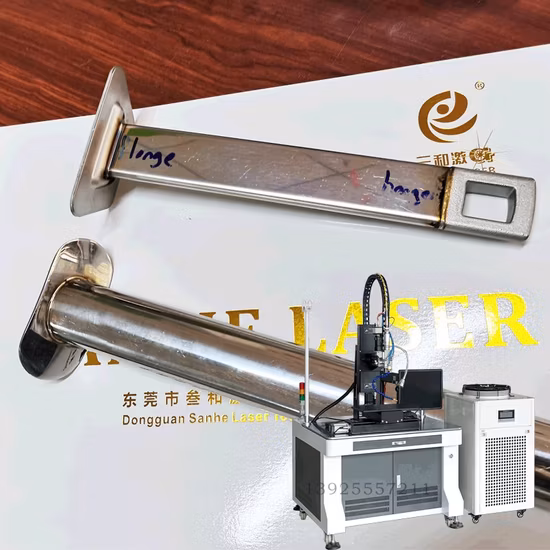

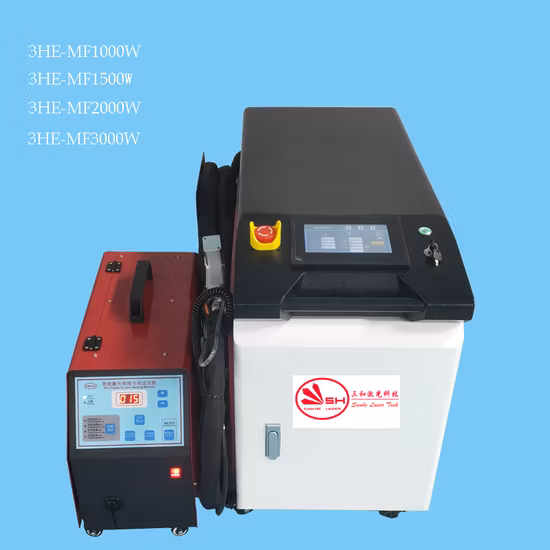

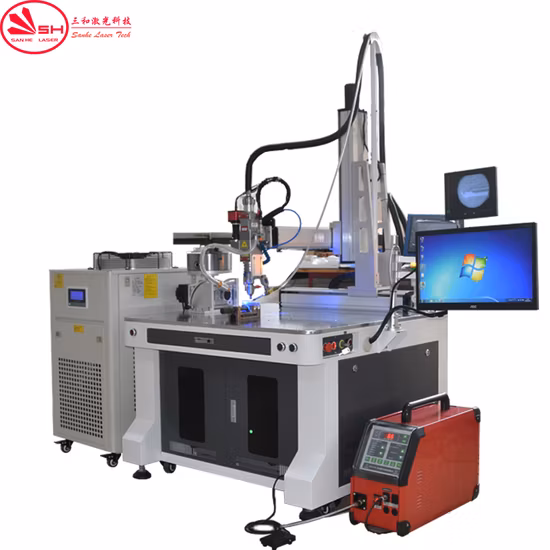

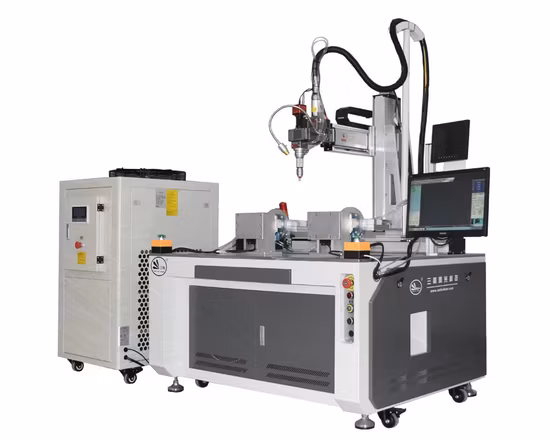

2000W/1500W Automatic Type Laser Welding Machine for Aluminum Copper Stainless Steel with Feeding Wires Automatic Fiber Continuous/Spot Laser Welding Machine

Continuous fiber laser welding VS Yag pulse laser welding:
1. The fiber continuous laser welding machine uses 500W-2000W laser, the laser has a long service lifeand the service life can reach 100,000 hours.2. The electro-optic conversion efficiency is high, and the energy of the power shaving is 25%-30% converted into laser, and the fiber conversion rate is more than 10 times that of the YAG laser.3. The whole machine has no consumables. YAG pulse welding machine should replace the xenon lamp and lens regularly.4. The whole machine has low energy consumption, saves electricity, high stability, maintenance-free, and low cost of use.5. The laser welding energy density is high, welding speed is four times that of YAG pulse.the weld seam is thin,the thermal deformation is small, and the heat affected zone is narrow and deep.6. Optical fiber output, easy to match with automated workbench or robot to improve production efficiency,and can meet 24 hours of continuous work.7. Customizable large workbench and XYZ axis travel.



Principle:
The fiber continuous welding machine is a high-end, new type of welding method.It is generally composed of a "welding mainframe" and a "welding workbench".The laser beam is coupled to the optical fiber, and after being transmitted over a long distance,it is processed into parallel light. Focusing on the workpiece to perform continuous welding,the welding effect is stronger due to the continuity of the light output, and the weld seam ismore fine and beautiful. According to the different needs of different industries, the equipmentcan meet the needs of users in different industries according to the matching shape and workbenchon the production site and the automation work.

Technical parameters:

Model	3HE-MF500W	3HE-MF750w	3HE-MF1000w	3HE-MF1500w	3HE-MF/2500w
Optical Parameters
Work Model	Continuous/ Modulation
Max Power(W)	500	750	1000	1500	2500
Wavelength(nm)	1080
Repetitive Rate(Hz)	0-5000		500-5000		0-5000
Pluse Width(ms)	0.05-50		0.05-0.6		0.05-50
Output Power Stability	<2%
Red Light	yes
Output Connector	QBH Customizable)
Fiber Core Diameter	25,50,100,Optional				50,100,200, optional
BBP(mm. mrad)	0.4,2,5				2,5,10
Input Voltage([email protected]	200-240, Single- phase				340-420,Three- Phase-Five-Wire
Cooling way	Water Cooling
Operating Temperature(ºC)	10-40
Power consumption(kw)	<4	<5	<7	<8	<9
Control Model	External RS232/ External AD
Power Adjustment(%)	10-100
